Product Description

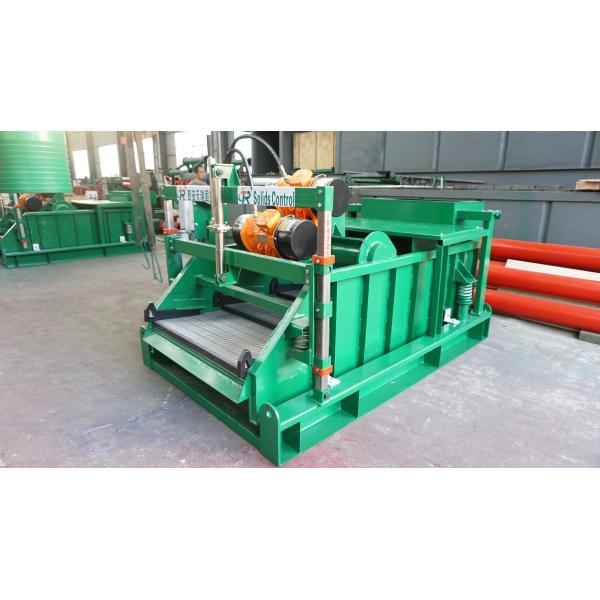

TR SolidsControl’s shale shaker is the primary solids control equipment in the drilling fluid system, designed to effectively separate large solid particles (drill cuttings) from drilling mud. Our design, available in both double and triplicate configurations, delivers reliable performance with high G-force, a wide screening area, and adjustable screen angles—all in a compact, cost-effective package. Utilizing imported vibration motors and advanced technology, our shale shakers are engineered to ensure efficient mud cleaning, prolong equipment life, and reduce overall drilling costs. They can also function as an underflow vibrating screen for mud cleaners.

Attributes

• Model: TRPS/TRZS Series (e.g., TRPS703, TRPS585-4, TRZS703, TRZS585)
• Vibration Motion: Balanced Elliptical (TRPS) or Linear (TRZS)
• Treatment Capacity: 120–140 m³/h
• Screen Specifications:
  • TRPS: (700×1250 mm)×3 panels
  • TRPS585/TRZS585: (585×1165 mm)×4 panels
• Vibration Strength: Up to 7.1 G (adjustable)
• Deck Adjustment: -1° to +5°
• Electrical Components: Schneider/Siemens; vibration motors by Martin or OLI
• Explosion Standard: ExdIIBt4 / IECEX / A-TEX

Technical Specifications

Tested using drilling mud with a viscosity of 45 s and specific gravity of 1.2 g/cm³.

Key Features

• High G-Force Performance: Achieves up to 7.1 G, providing powerful vibration for effective solids separation.
• Wide Screening Area: Large screen panels (up to 2.7 m²) maximize treatment capacity and enhance mud cleaning efficiency.
• Adjustable Screen Angle: Mechanical deck adjustment (-1° to +5°) allows fine-tuning for optimal screening performance.
• Robust Construction: Features overall heat treatment and a compact, reinforced design for prolonged service life and reliability.
• Quick Screen Replacement: Wedge-type compaction devices enable fast screen replacement, reducing downtime and maintenance costs.

Applications

• Oil & Gas Drilling – Ensures high-quality drilling fluid by removing large solids.
• Drilling Waste Management – Optimizes separation processes to reduce waste disposal costs.
• Tunnelling Construction – Provides effective mud cleaning for stable tunnelling operations.
• City Bored Piling and Trenchless HDD – Maintains mud quality in various municipal and construction projects.
• Mining, Thermal Power, Cement Plants, and Environmental Protection – Versatile use in multiple industrial sectors.

Competitive Advantages

• High-quality products at competitive prices.
• Short delivery times with flexible payment terms.
• Timely after-sale service and comprehensive technical support.
• Equipment fully interchangeable with international brands.
• Extensive export experience to global markets including Egypt, the US, Canada, Thailand, Poland, Australia, UAE, and South Africa.
