Product Description

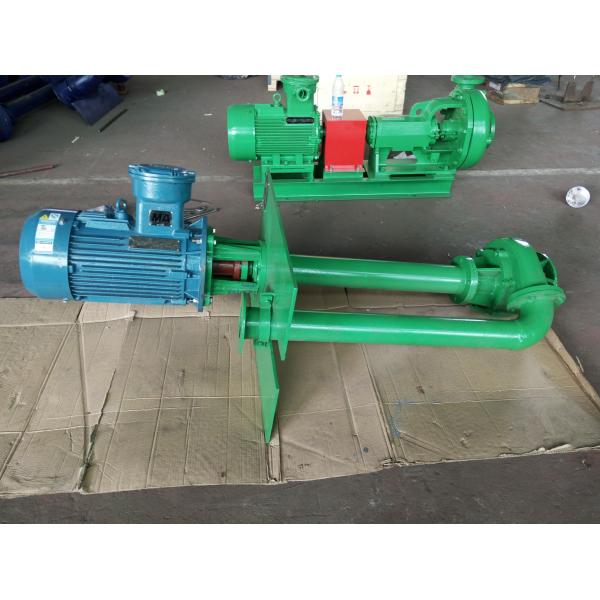

The TR YZ Series Submersible Slurry Pump is engineered for efficient transport of viscous liquids and slurries containing large solid particles. Ideal for applications in environmental protection, building materials, coal washing, municipal works, thermal power, refineries, mining, paper making, cement plants, and chemical industries, this pump excels in conveying thick oil, oil residue, dirty oil, mud, mortar, and running sand. Constructed with SS304 material, it provides excellent sealing and environmental protection while maintaining low noise and smooth operation. Its unique design—without bearings and shaft seals between the impeller and pump body underwater—minimizes maintenance costs and extends service life. Driven by a vertical motor mounted on a base and connected via coupling, the pump delivers robust performance under high-temperature conditions and when handling media with high-density solid particles.
Attributes
Model: YZ Series (e.g., 50YZ25-12, 50YZ20-18, 80YZ50-20B, 80YZ50-20, 80YZ80-20, 100YZ100-30A, 100YZ100-30, 100YZ160-38B, 100YZ120-60, 150YZ250-40A, 150YZ250-40B)
Construction: SS304 material for superior sealing and environmental protection
Impeller: Semi-open type for effective mixing
Design: Compact with customizable submerge length and high rigidity in submerged shaft parts
Drive: Vertical motor mounted on a base, connected by coupling
Maintenance: No bearing and shaft seal between the impeller and pump body underwater, reducing repair costs
Technical Specifications
| Model | Flow | Lift | Speed | Motor Power |
| 50YZ25-12 | 25 m³/h | 12 m | 1430 r/min | 3 kW |
| 50YZ20-18 | 20 m³/h | 18 m | 1430 r/min | 4 kW |
| 80YZ50-20B | 40 m³/h | 16 m | 1440 r/min | 5.5 kW |
| 80YZ50-20 | 60 m³/h | 17.5 m | 1440 r/min | 7.5 kW |
| 80YZ80-20 | 90 m³/h | 22 m | 1460 r/min | 11 kW |
| 100YZ100-30A | 75 m³/h | 30 m | 1470 r/min | 18.5 kW |
| 100YZ100-30 | 60 m³/h | 36 m | 1470 r/min | 22 kW |
| 100YZ160-38B | 82 m³/h | 33 m | 1480 r/min | 30 kW |
| 100YZ120-60 | 120 m³/h | 40 m | 1480 r/min | 45 kW |
| 150YZ250-40A | 135 m³/h | 35 m | 1480 r/min | 55 kW |
| 150YZ250-40B | 120 m³/h | 28 m | 1480 r/min | 37 kw |
Key Features
- Compact Design: Optimized for small installation spaces without compromising performance.
- High Rigidity: Robust submerged shaft construction ensures reliable operation under heavy load.
- Customizable Submerge Length: Tailor the pump design to fit specific tank dimensions.
- Low Maintenance: Eliminates the need for bearings and shaft seals between the impeller and pump body, reducing repair costs.
- Efficient Drive System: Vertical motor mounted on a base with coupling connection guarantees smooth, continuous performance.
Applications
Widely used in drilling waste management, tunneling construction, oil & gas drilling, city bored piling, trenchless HDD, oil sludge dewatering systems, coal bed gas solids control systems, oil mud separation, water drilling, coal washing, municipal projects, thermal power generation, mining, paper making, cement plants, and more.
Competitive Advantages
- High-quality products offered at competitive prices.
- Shortest delivery times with flexible payment terms.
- Timely after-sale service and comprehensive technical support.
- Equipment fully interchangeable with leading international brands.
- Extensive global export experience to major markets worldwide.
